Beijing Daxing Jinghua School Iconic ETFE Membrane Stadium Roof
- Project Name: Beijing Daxing Jinghua School ETFE Membrane Stadium
- Membrane Type:Premium ETFE (High-Performance Film)
- Structural System: Space Steel Pipe Truss & Tensile Cables
- Core Function: Grandstand Shelter, Solar Shielding, Campus Landmark
- Market Sector: School / Educational Infrastructure
- Location: Daxing District, Beijing, China
- Warranty: 30+ Years (Engineered for durability)
Architectural Vision: A Lightweight Landmark for Education
The ETFE Stadium Roof at Beijing Daxing Jinghua Schoolstands as a premier example of how tensile membrane architecture can redefine educational infrastructure. The design features a soaring, wing-like canopy that provides comprehensive coverage for the grandstands. Against the vibrant red and blue of the athletic track, the crisp white and translucent ETFE surfaces create a striking visual contrast, establishing the stadium as the most recognizable landmark on campus.
Material Innovation: The Advantages of High-Performance ETFE
For this Stadium ,ETFE (Ethylene Tetrafluoroethylene) was selected as the primary roofing medium. This advanced fluoropolymer film offers significant benefits over traditional glazing:
Superior Light Transmittance: With over 90% transparency, ETFE allows soft, natural daylight to flood the seating areas. This eliminates the need for artificial lighting during daytime events and removes the “heavy” feeling associated with traditional metal or concrete roofs.
Ultralight Structural Load: ETFE is approximately 1% the weight of glass. This extreme lightness allowed our engineers to design a more slender, artistic steel support frame, reducing material costs while maintaining structural integrity.
Climate Resilience & Self-Cleaning: Specifically engineered for Beijing’s seasonal variations, the membrane is highly resistant to UV radiation and environmental pollutants. Its low-friction surface ensures that dust and debris are washed away by rain, maintaining its pristine appearance for over 30 years.
Structural Engineering: Fluid Steel Trusses & Unobstructed Views

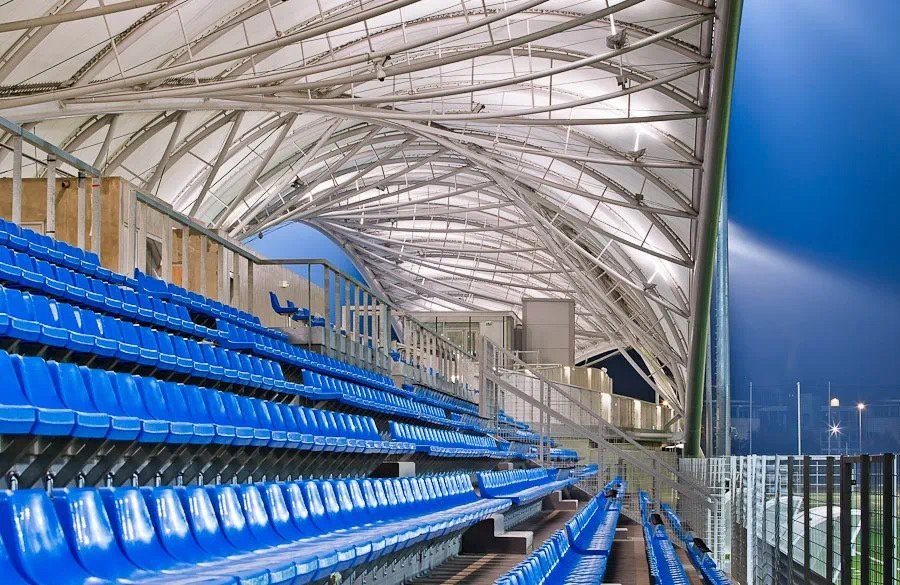

The interior of the grandstand reveals a complex, fluid spatial steel pipe truss system.

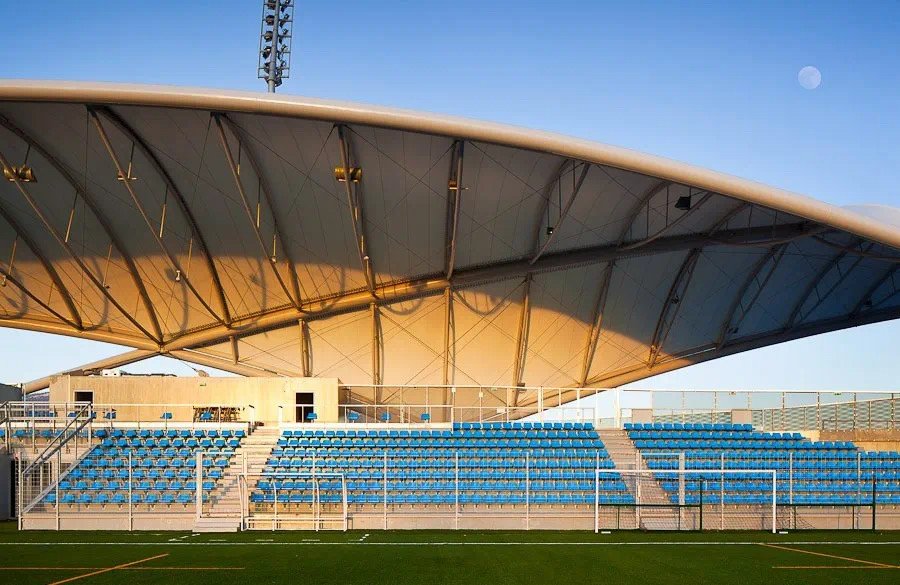

Column-Free Span: By leveraging advanced tensioning techniques, SkyTensile achieved a massive cantilevered span. This ensures a 100% unobstructed view for every spectator, a critical requirement for high-speed athletic competitions.
Integrated Aesthetics: The precision-engineered steel tubes mirror the organic curves of the membrane, creating a seamless integration between the “skeleton” and the “skin” of the building.
To ensure the long-term stability of the ETFE Stadium Roof, our engineering team conducted advanced 3D finite element analysis. This was crucial for optimizing the tension distribution across the large-span ETFE cushions. By integrating a smart sensors network within the steel trusses, the structure can monitor real-time wind loads and internal pressure, ensuring maximum safety for the students and faculty underneath this massive ETFE stadium roof
Sustainability: Passive Cooling & Energy Efficiency
The ETFE system functions as a high-efficiency thermal regulator. By reflecting excess solar radiation, it creates a “passive cooling” effect, keeping temperatures under the canopy 3°C to 5°C cooler than conventional stands during peak summer months. This commitment to energy efficiency aligns perfectly with modern Green Campus building standards

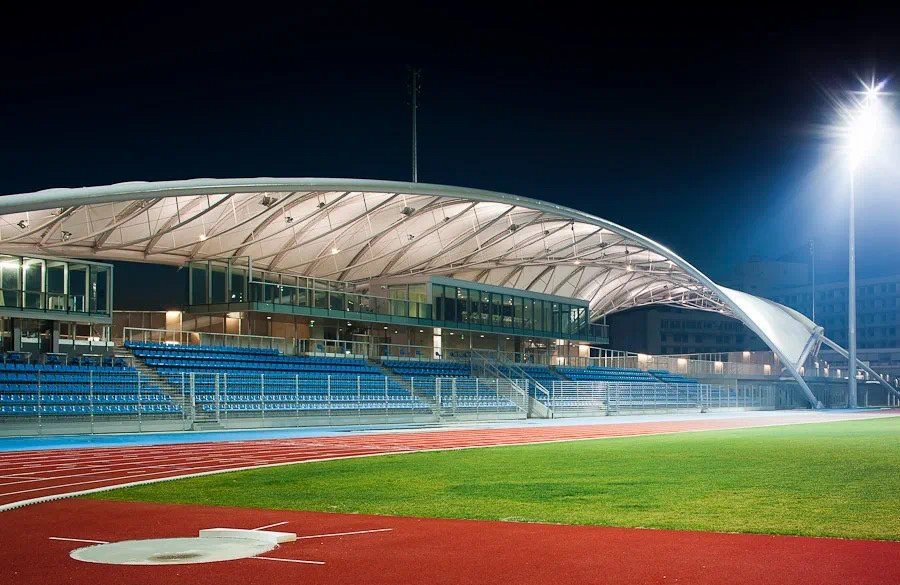

Nightscape Architecture: A Luminous Campus Beacon
At night, the stadium undergoes a dramatic transformation. The translucent ETFE film acts as a massive diffuser for the internal lighting system, making the entire structure glow softly. This architectural lighting not only enhances safety but also provides the school with a breathtaking venue for evening ceremonies and community events.
FAQ: Engineering the ETFE Stadium Roof
The ETFE stadium roof is designed with a specific curvature to prevent snow accumulation and is reinforced to handle the statutory snow loads of the Beijing Daxing district
This ETFE stadium roof offers up to 90% light transmission, creating a natural, glare-free environment that reduces the need for artificial lighting during daytime training
